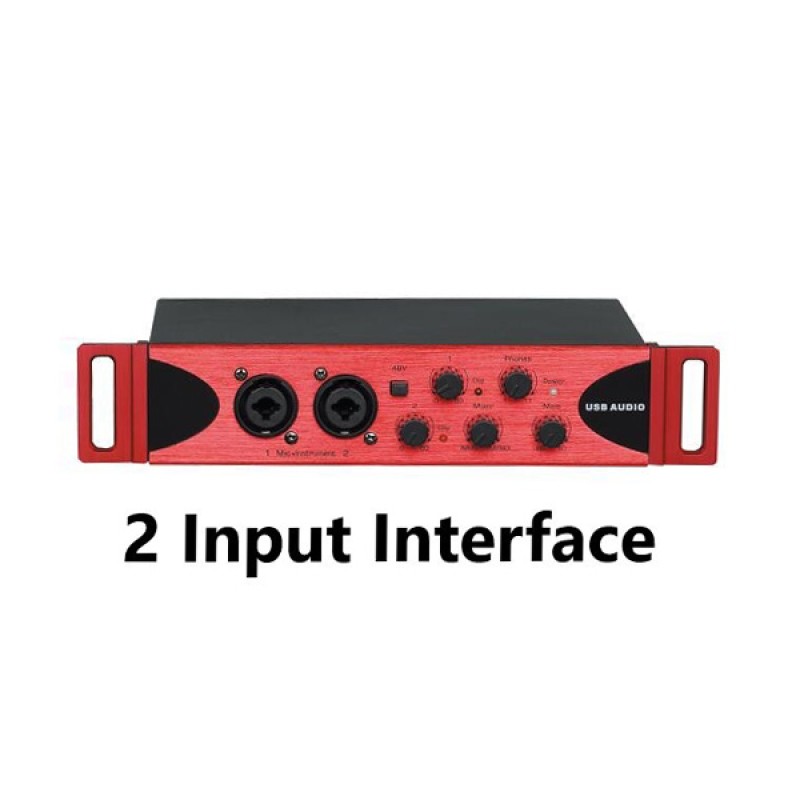

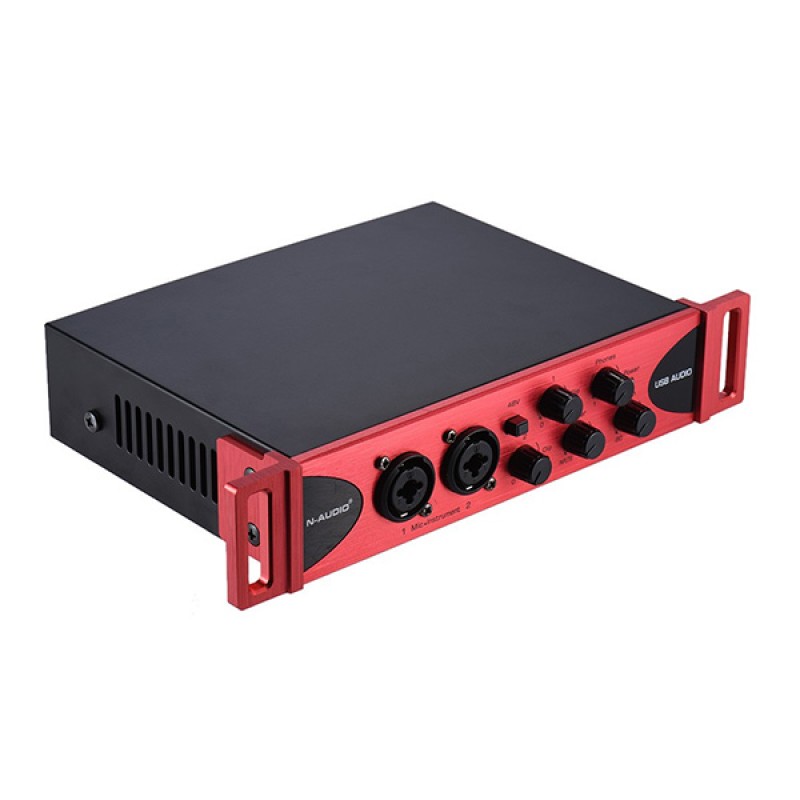

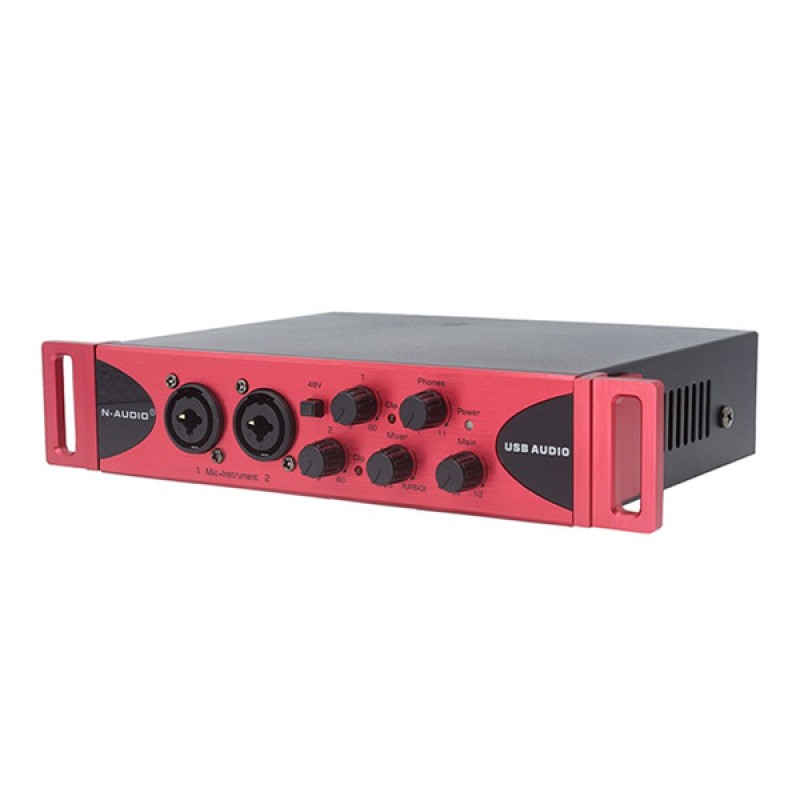

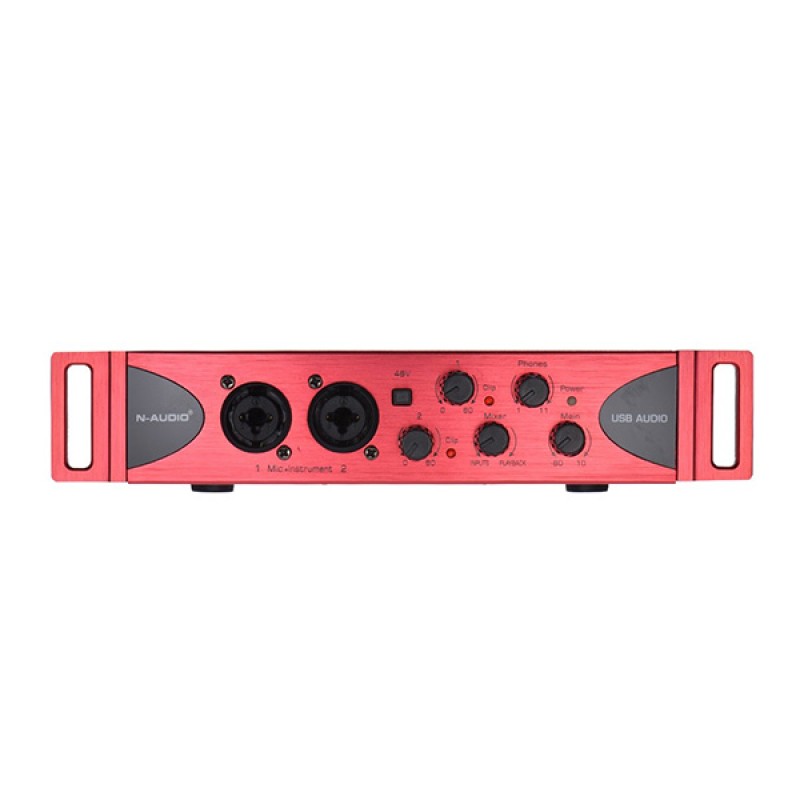

N-AUDIO Audio Box USB 2 XMAX Speaker Input - USBAUDIO BOX
49.990 KWD
- Brand: N-AUDIO
- Product Code: USBAUDIO BOX
- Availability: Out Of Stock
Audiobox USB bus-powered audio recording interface featuring 2 microphone instrument inputs with 48V phantom power for musicians and digital DJs
Features:
Specifications:
Size:
Features:
- USB BOX 2 XMAX speaker input interface (also supports instrument input standard) Support +48 V condenser microphone power supply function gain

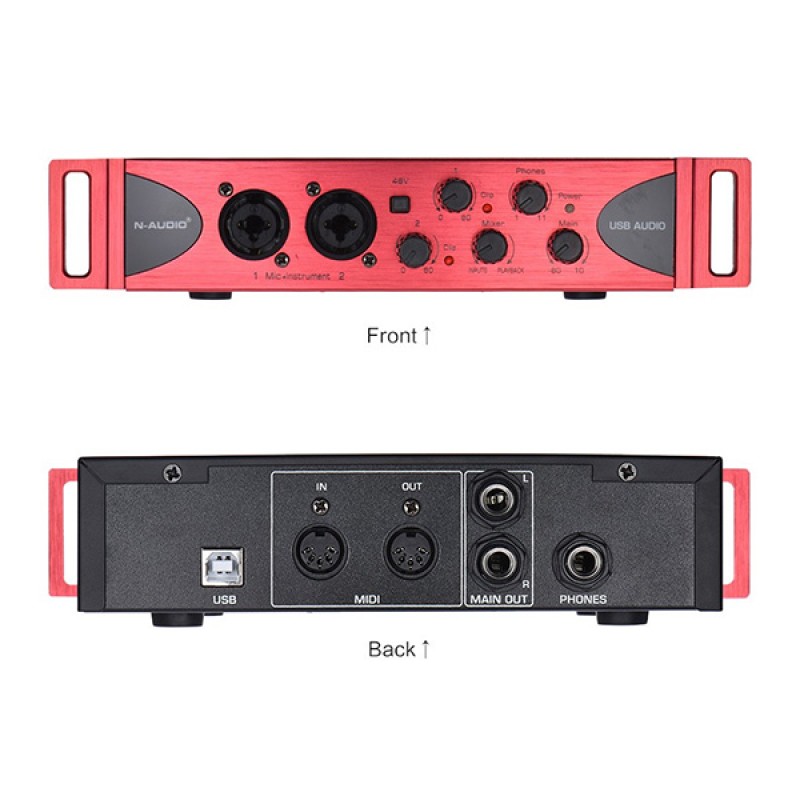

- Hardware knob adjustment, a signal consumption peak indicator 2 Balanced output interface 1 stereo headphone output interface, headphones
- Hardware knobs Control volume MIDI input and output interface USB powered, no external power supply 24bit / 48kHz Digital Audio Standard
Specifications:
- Dynamic Range: Analog-Digital 102dB; Digital – Analog 110dB Compatible with Apple and PC dual systems (including Mac OS X 10.6.8 or higher And Windows)
- Support for ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows XP SP3, Vista x64 / x32 SP2, Windows 7 x64 / x32 SP1, Windows 8 x64 / x32)
- Microphone preamp: XLR Female balanced
- Headphone Output type: 1/4" TRS Active Stereo
- Frequency Response (±3.0 dB): 14 Hz to 70 kHz
- Input Impedance (Balanced) 1200Ω
- THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
- S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
- Common Mode Rejection Ratio (1 kHz, 55 dB Gain) > 45 dB
- Gain Control Range (± 1 dB) 0 dB to 35 dB
- Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
- Phantom Power (±2 VDC) +48 VDC
- Instrument Input type: 1/4”
- TRS Female unbalanced input impedance: 0.5 MΩ
- Line Outputs type: 1/4”
- Balanced output impedance: 51Ω
- Headphone Output type: 1/4” TRS active stereo
- Maximum output: 60 mW/Ch @ 60Ω load
- Frequency response (±1.0 dB): 20 Hz - 30 kHz
- Type: Dual 5-pin Female DIN
- Digital Audio
- ADC dynamic range (A-wtd, 48 kHz sample rate): 105 dB
- DAC dynamic range (A-wtd, 48 kHz sample rate): 105 dB
- Power: USB bus-powered
Size:
- Dimensions: 1/3U (steel chassis)
- Height: 5.5” (139.7 mm)
- Depth: 1.75” (44.45 mm)
- Width: 5.5” (139.7 mm)
- Weight: 5 lbs (2.27 kg)
