XIAOMI MI Mesh System AX3000 (2-Pack)

Xiaomi's mesh system provides full coverage for complex home arrangements:

Xiaomi Mesh System AX3000 (2-Pack) combines into a mesh network that provides Wi-Fi 6 coverage throughout the home, covering up to 4,000 square feet of space. Xiaomi Mesh System AX3000 supports mesh networking with the same model and/or Mi Router AX9000 for up to 10 total devices. The signal roams between different routers automatically and seamlessly, allowing you to play as you go.

Mesh system with self-repairing capabilities:

In a mesh network created using Xiaomi Mesh System AX3000, when a failed node is detected, the entire network architecture is re-planned to ensure normal mesh network operation.

The easy-to-use mesh set is smart and simple to install:

Xiaomi Mesh System AX3000 (2-Pack) bundle is pre-configured at the factory, so no complicated set-up is required, and it is ready to use. It's now easy to enter the high-speed Internet era, with no expertise required.

* Only the two Xiaomi Mesh System AX3000 units in the kit are pre-connected to each other at the factory - this is not provided for all Xiaomi's mesh router products.

Get started right away and enjoy lightning-fast Wi-Fi 6:

Xiaomi Mesh System AX3000 (2-Pack) offers 2.4GHz and 5GHz bands, each with 802.11ax technology. The two bands offer a combined dual-band wireless speed of up to 2976Mbps. That's nearly twice the speed of a typical AC1200 router. 1024 QAM technology is also faster than Wi-Fi 5's 256 QAM, so you don't have to wait for high-speed Internet access.

160MHz high-bandwidth for a superb experience:

If bandwidth is like a highway, conventional 2-lane traffic systems are always congested. With the Xiaomi Mesh System AX3000 (2-Pack), however, the width of every lane, and speeds in the 5GHz band are doubled. Enjoy an ultimate smooth online experience, even when connecting with multiple devices.

2X2 160MHz  | 2X2 80MHz

High-efficiency OFDMA transmission makes Internet access smoother for multiple devices:

OFDMA technology allows routers to process data flow from multiple devices simultaneously when large devices require data transmission, effectively reducing network congestion and greatly reducing latency.

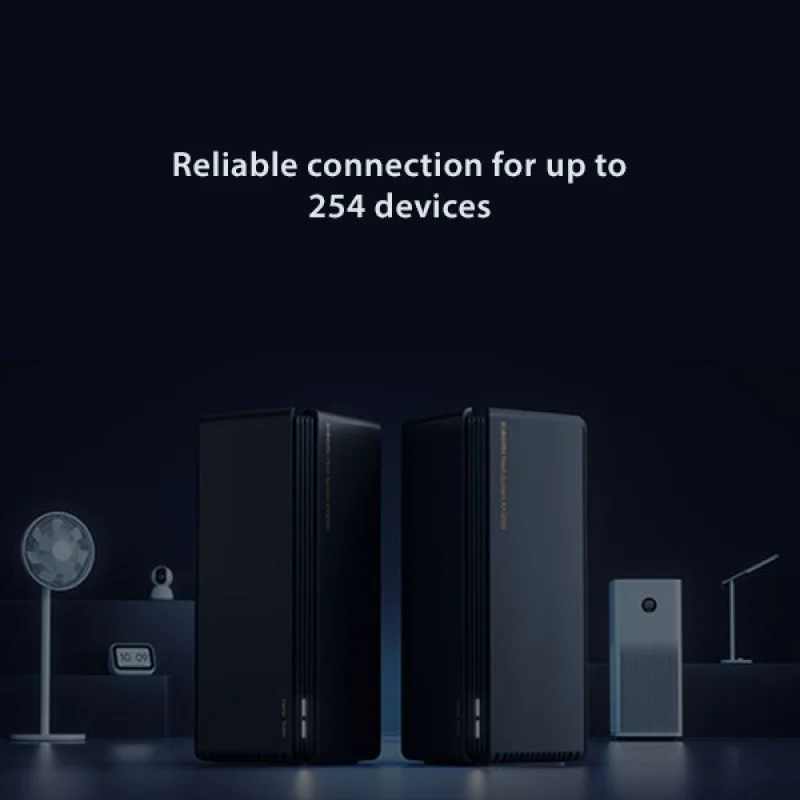

Stable online connectivity for 254 devices simultaneously:

The smart home era is bringing an ever-increasing number of connected devices into the home. Each Xiaomi Mesh System AX3000 (2-Pack) product comes with 256MB of RAM to cater to occasional complex environments with large numbers of devices such as family gatherings or parties so that stable connectivity and response are ensured in time.

Not just energy efficient, but more durable:

Target Wake Time technology only connects when a transmit signal is received, otherwise remaining in sleep mode. This effectively reduces average power consumption when connecting to Wi-Fi devices, and extends the product life span.

*TWT technologies require to be supported by endpoint devices.

A simpler, smarter user experience:

Xiaomi Mesh System AX3000 (2-Pack) supports intelligent control via the Xiaomi Home/Mi Home app, simplifying network configuration so that even novice users can easily access high-speed networks.

One pack, More options:

If this package does not meet your needs, we also offer Xiaomi Mesh System AX3000 (1-Pack). Whether you live in a small apartment or a large house with several floors, we have the right on-demand solution for you to create the Internet connectivity you want.

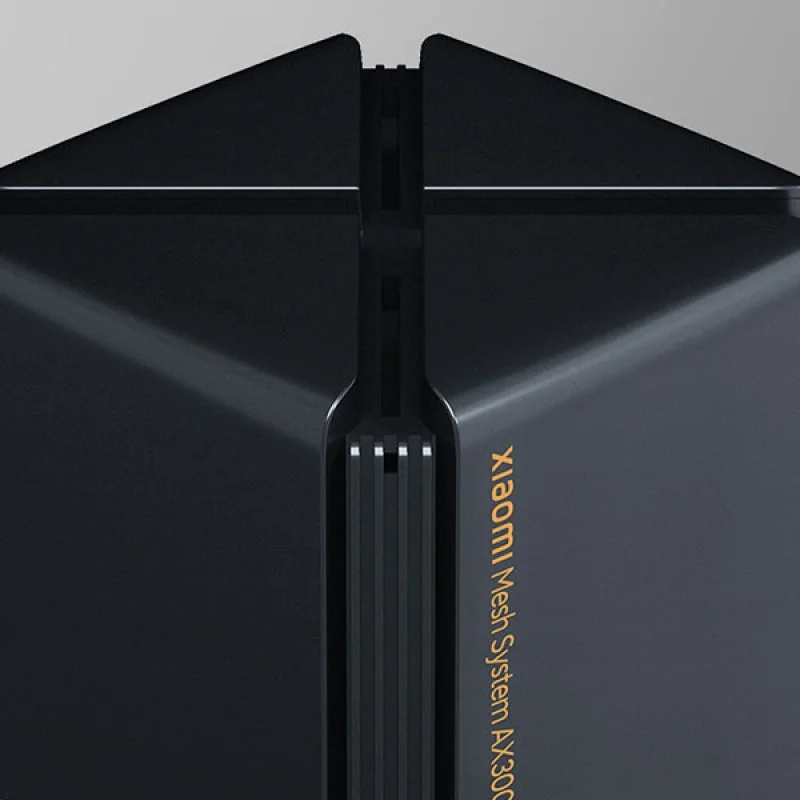

Cool black rectangle cube-shaped design:

Concealed dual-band high-performance antennas, tower-type thermal architecture, large channel convection and extra-large metal heat sink ensure stable operability.

Greater specialist technology support:

• Beamforming: Directional enhanced signal for greater coverage.

• BSS Coloring: Reasonable algorithm optimization reduces interference between different Wi-Fi networks.

• WPA3: New-generation secure encryption protocol ensures home network data security

• IPv6: More address space for more efficient forwarding and security

Specifications:

Size: L×W×H (per unit): 97 mm x 97 mm x 222 mm

Hardware configuration:

• Processor: Qualcomm® IPQ5000 Dual-core A53 1.0GHz CPU
• Network processing unit: Single core 1.0GHz NPU
• Memory: 256MB
• 2.4G Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 574Mbps)
• 5GHz Wi-Fi: 2×2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
• Antennas: High-gain antennas
• Heat dissipation: Natural heat dissipation
• Total ports: 1×10/100/1000Mbps self-adaptive WAN port (Auto MDI/MDIX) 3×10/100/1000Mbps self-adaptive LAN ports (Auto MDI/MDIX)
• LED indicator light: 2 lights, 1x System indicator, 1x  Internet indicator
• 1x System reset button
• 1x Mesh networking button
• 1x Power input port
• Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Wireless specifications:

• Dual-band: 2.4GHz, 5GHz
• Modulation:

11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps)

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rate: MCS0-MCS15

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

Data rates: MCS0-MCS11 (supports 2 streams).

Software specifications:

• Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
• WiFi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
• Management applications: Supports Web, Android, iOS

Working Environment:

• Working environment Temperature: 0-40℃
• Operating humidity: 10%-90%RH (non-condensing)
• Storage temperature: -40-70℃
• Storage humidity: 5%-90%RH (non-condensing)

Package contents:

• Xiaomi Mesh System AX3000
• Instruction Manual
• Power cord
• Network cable
