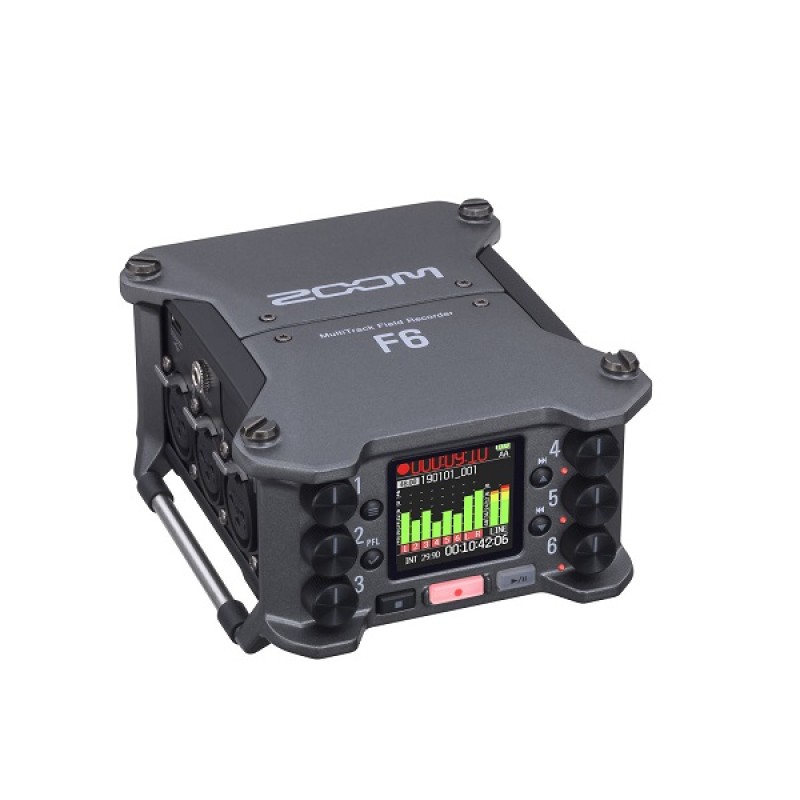

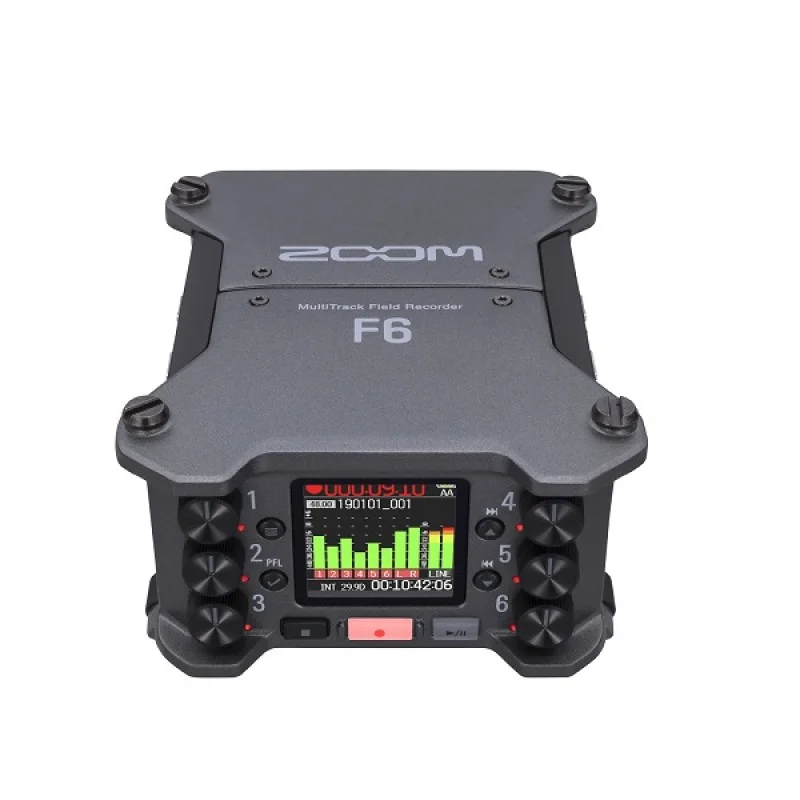

Portable Recorder |
- Number of Tracks: WAV: 8 (6 Inputs + Stereo Mix)
- Max Sample Rate/Resolution: 192 kHz / 32-Bit
- Microphone: None
- Built-In Speaker: None
- Display: Color LCD (Backlit)
- Memory Card Support: SD, SDHC, SDXC (Up to 512 GB)
- Internal Storage: None
|
Recording |
- Audio File Formats: BWF, MP3, WAV, iXML
- Sample Rates: WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz
- Bit Depth: 16 / 24 / 32-Bit
- Bit Rates: 128 to 320 kb/s
- Signal Processing: Limiter
- Timecode: Yes
- Frame Rates Supported: 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
- Clock Accuracy: ±0.2 ppm (Timecode)
- Recording Time: WAV 48 kHz/24-Bit: 57.69 Mins per GB (Stereo) | WAV 192 kHz/24-Bit: 14.41 Mins per GB (Stereo)
|
Connectivity |
- Analog I/O: 6 x XLR 3-Pin Female Balanced Line/Mic Input (Lockable) | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
- Digital I/O: 1 x 1/8" / 3.5 mm TRS Timecode In/Out
- Phantom Power: +24 / 48 V
- Phantom Power Current: ≤10 mA per Channel
- Host Connection: 1 x USB Type-C (I/O, USB 2.0)
|
Power |
- Power Options: Batteries or AC/DC Power Adapter

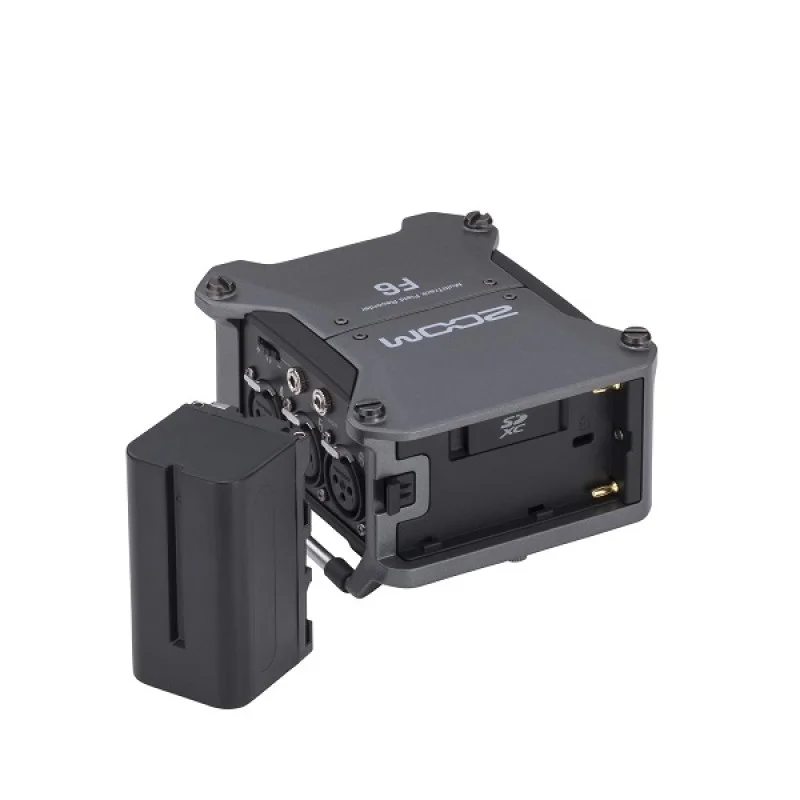

- Battery Type: 4 x AA (Included) | 1 x L Series (Not Included)
|
Performance |
Gain Range
- Mic Inputs: +12 to +75 dB
- Line Inputs: +8 dB to +55 dB
Max Input Level
- Mic Inputs: +4 dBu
- Line Inputs: +24 dBu
Max Output Level
Headphone Output Power
- 100 mW per Channel into 32 Ohms
Dynamic Range
- Line Outputs: 95 dB
- Headphone Outputs: 108 dB
Impedance
- Mic Inputs: ≥3 kOhms
- Line Inputs: ≥5 kOhms
- Line Outputs: ≤100 Ohms
- Headphone Outputs: ≤15 Ohms
- Timecode Input: 4.6 kOhms
- Timecode Output: ≤50 Ohms
|
